LLDP (Link Layer Discovery Protocol)

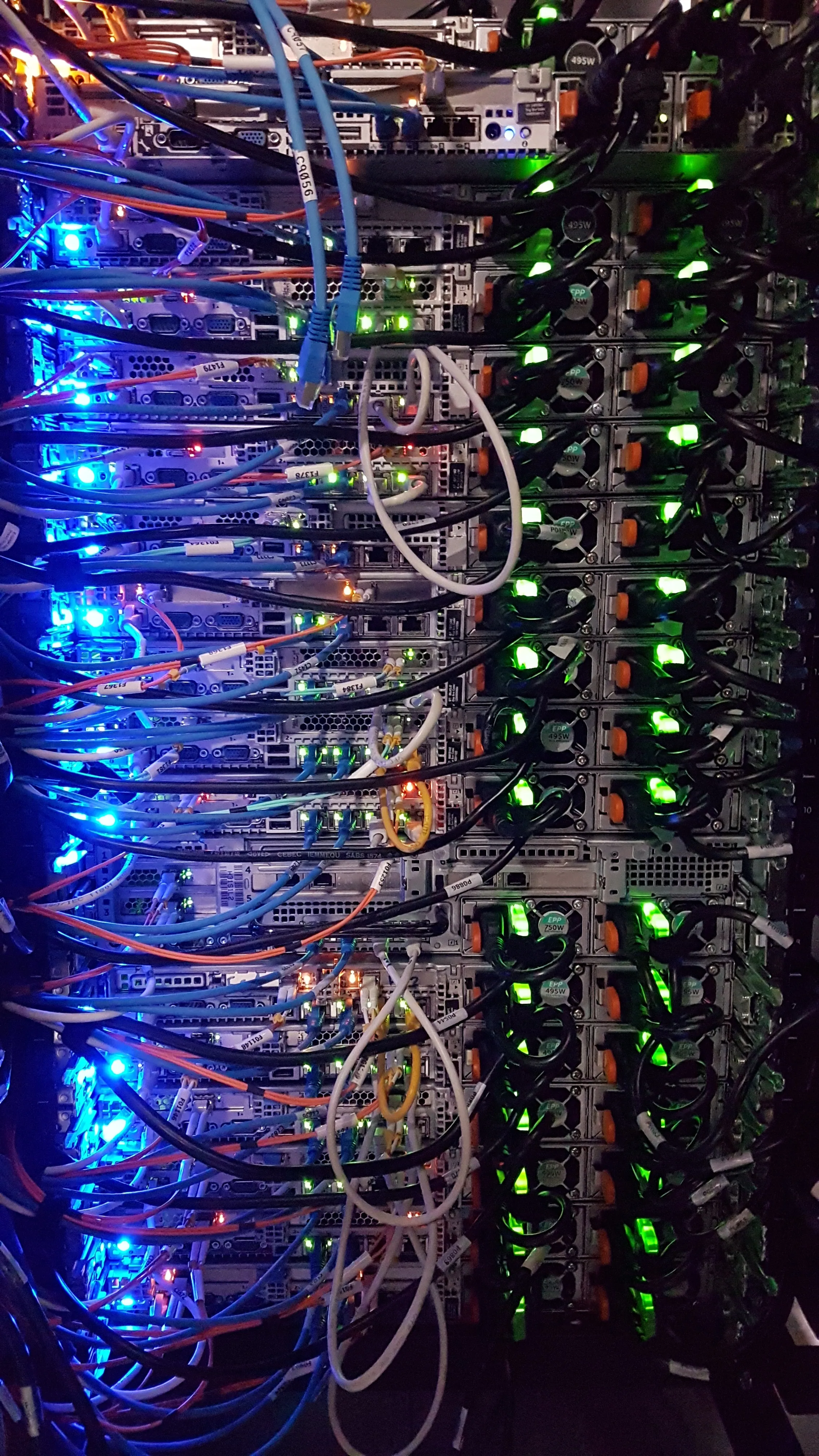

A datacentre rack with messy cabling

What is LLDP ?

The TLDR version: Devices emit beacons that say who they are. These beacons go as far as the nearest Layer2 bridge.

The Juniper Summary of LLDP is a good simple explanation. Perhaps a simpler one is it involves hardware using it sending out a beacon frame identifying themselves every so many seconds, and other hardware reading that and noting it. It was invented as a common, open standards replacement for Cisco CDP and other proprietary protocols.

These Layer2 discovery protocols were originally designed for use by switches and routers, and could allow quicky and easy verification that everything was connected as expected.

How is it normally used ?

A diagram showing Router1 connected to both Switch1 and Switch2

For example, on most Cisco switches, you could configure Router1 like.

hostname Router1
lldp run
!
interface GigabitEthernet0/1
  description Link to Switch1
  lldp transmit
!

And on Switch1

hostname Switch1
lldp run
!
interface GigabitEthernet0/2
  description Link to Router1
  lldp recieve
!

Then, on switch1 you could use LLDP to show Router1 is connected. This is usually also going to be avaliable via SNMP or other router management API’s. An example to show it on the CLI is :-

# show lldp neighbors
INDEX   PORT   DEVICEID          PORT     NAME    CAPABILITIES TTL
----------------------------------------------------------------------
1       gi0/1  aa:bb:cc:dd:ee:ff Gi1/0/31 Router1 Bridge       93

Security Implications.

Across my career I’ve heard numerous claims that LLDP and other similar protocols are security risks. By default, they do indeed provide extra information to an attacker. This can include what type of device they are connected to and what operating system and version it is running.

This does indeed break the general rule of not leaking extra information. However, it also provides significant benefits, some of which can also be security benefits. You can easily tell if a device has been physically recabled, and you can confirm devices are cabled as designed, rather than merely in a way which works.

I think it is unwise to say LLDP is a security benefit or risk, but rather to consider the individual circumstances of your deployment.

Transmitting LLDP on Unix Systems.

Three main options.

  • lldpd - My prefered option.
  • ladvd - Another good option.
  • systemd - Generally a no-install option.

The first two are standlone daemons, and can be configured quite flexibly. They also support proprietary protocols like CDP, EDP and the like. The last option is built into systemd which ships with most Linux distributions these days.

# Contents of /etc/systemd/network/lldp.conf
LLDP=true                   # recieve LLDP
EmitLLDP=nearest-bridge     # send LLDP

If you are using networkmanager, instead use.

$ sudo nmcli connection
<note the name of the connection you want to add LLDP for>
$ sudo nmcli connection modify <connection name> connection.lldp 1

Transmitting LLDP on Windows Systems.

You need to install the optional LLDP agent features. On my Windows 11 system, this was. There are limited options to configure this agent.

# Run in a Administrator Powershell.

PS> Add-WindowsCapability -online -Name Rsat.LLDP.Tools~~~~0.0.1.0

Reading LLDP with tcpdump.

You can use tools, but even if you aren’t running a LLDP/CDP listener you can just packet capture and see if anyones sending you anything.

# Dump LLDP packets
$ tcpdump -n -v -i $INTERFACE ether[12:2]=0x88cc
14:45:01.218838 LLDP, length 218
	Chassis ID TLV (1), length 7
	  Subtype MAC address (4): c8:7f:54:02:5e:fd
	Port ID TLV (2), length 7
	  Subtype MAC address (3): c8:7f:54:02:5e:fd
	Time to Live TLV (3), length 2: TTL 120s
	System Name TLV (5), length 9: localhost
	System Description TLV (6), length 105
	  Debian GNU/Linux trixie/sid Linux 6.8.12-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.8.12-1 (2024-05-31) x86_64
	System Capabilities TLV (7), length 4
	  System  Capabilities [Bridge, WLAN AP, Router, Station Only] (0x009c)
	  Enabled Capabilities [Bridge, WLAN AP, Router] (0x001c)
	Management Address TLV (8), length 12
	  Management Address length 5, AFI IPv4 (1): 192.168.0.18
	  Interface Index Interface Numbering (2): 2
	Management Address TLV (8), length 24
	  Management Address length 17, AFI IPv6 (2): fd31:1623:5d00:4625:ca7f:54ff:fe02:5efd
	  Interface Index Interface Numbering (2): 2
	Port Description TLV (4), length 6: enp7s0
	Organization specific TLV (127), length 9: OUI IEEE 802.3 Private (0x00120f)
	  Link aggregation Subtype (3)
	    aggregation status [supported], aggregation port ID 0
	Organization specific TLV (127), length 9: OUI IEEE 802.3 Private (0x00120f)
	  MAC/PHY configuration/status Subtype (1)
	    autonegotiation [supported, enabled] (0x03)
	    PMD autoneg capability [10BASE-T hdx, 10BASE-T fdx, 100BASE-TX hdx, 100BASE-TX fdx, Pause for fdx links, 1000BASE-T fdx] (0xec81)
	    MAU type 1000BASET fdx (0x001e)
	End TLV (0), length 0


# Dump LLDP or CDP packets
$ tcpdump -n -v -i $INTERFACE '(ether[12:2]=0x88cc or ether[20:2]=0x2000)'
...

My recommendations.

  • In general, I think the benefits of running LLDP on all hosts and network equipment outweighs the risks.
  • On physical environments for which I am responsible I always run lldpd on unix systems, or enable the Windows LLDP service, and configure the routers and switches to both emit and recieve lldp data.
  • You can use it for both ad-hoc troubleshooting, or for building a network map.
  • It is particularly useful for validating that the design and build of the network are the same.
